Overview

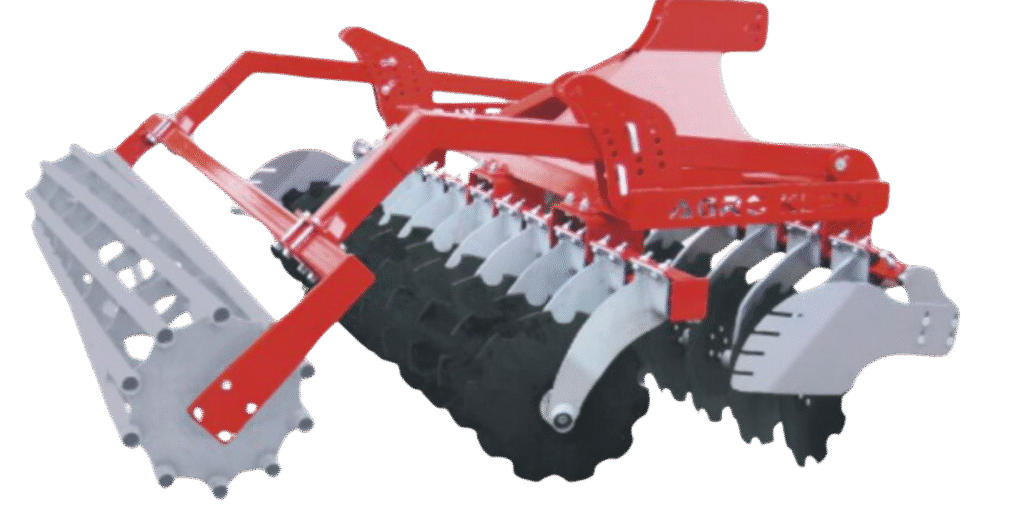

The AGRO KLON BTN Disc Harrow is engineered for reliable and efficient soil cultivation. It features two rows of Ø560 mm discs, each mounted with 35 mm rubber shock absorbers for stable and long-lasting operation. Side screens help control soil distribution, while the spacing between disc rows (93 cm standard) ensures thorough mixing of soil and residues.
The BTN is available in multiple working widths ranging from 1.8 m to 4.0 m, making it suitable for tractors from 60 to 200 HP. A tube roller (Ø500 mm) comes standard, and a wide variety of roller options are available to suit specific field conditions.
Additional customization includes the option for OFAS discs, maintenance-free hubs, and increased row spacing (100 or 120 cm). The robust frame and versatile roller options make the BTN ideal for both light and heavy tillage.
Specifications
Disc Harrow BTN
- Disc Rows: Two rows, Ø560 mm
- Shock Absorption: 35 mm rubber dampers
- Side Screens: Included
- Row Spacing: 93 cm (optional: 100 or 120 cm)
- Standard Roller: Tube roller Ø500 mm
- Optional Rollers:
- Strunowy zębaty (Toothed wire roller)
- Packer roller
- Roof-profile roller
- Crosskill roller
- Ring roller
- Rubber roller
Model Specifications Table
| Model | Width [m] | Weight [kg] | Number of Discs | Power Requirement [HP] |
|---|---|---|---|---|
| BTN 180 | 1.8 | 500 | 14 | 60–70 |
| BTN 200 | 2.0 | 600 | 16 | 70–80 |
| BTN 220 | 2.2 | 700 | 18 | 80–90 |
| BTN 250 | 2.5 | 1150 | 20 | 90–100 |
| BTN 270 | 2.7 | 1250 | 22 | 100–120 |
| BTN 300 | 3.0 | 1350 | 24 | 120–140 |
| BTN 350 | 3.5 | 1400 | 26 | 130–150 |
| BTN 400 | 4.0 | 1500 | 32 | 160–200 |
